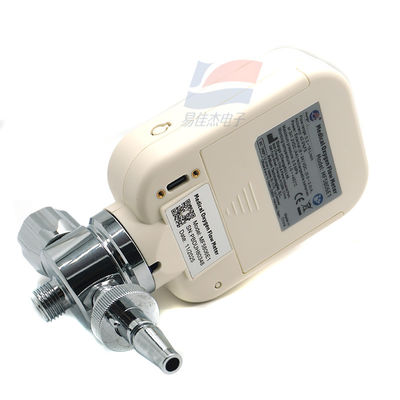

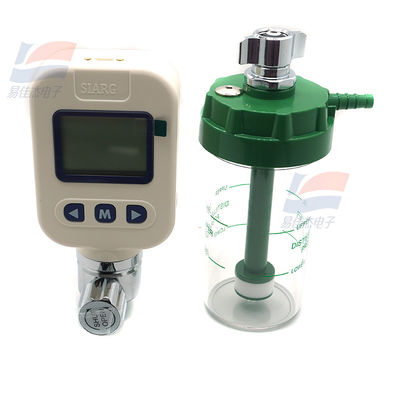

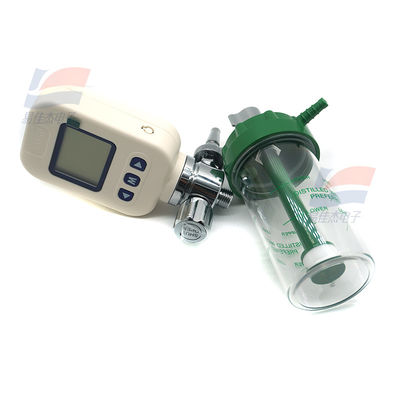

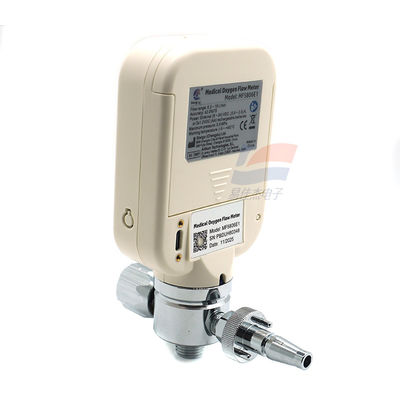

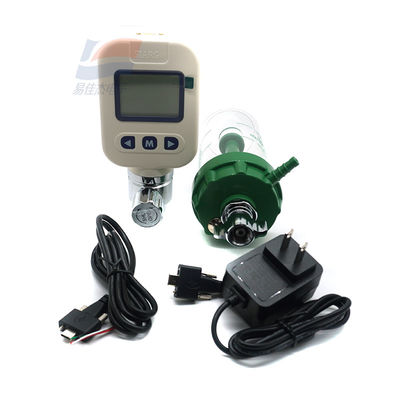

YJJ MF5806E1 Flow Sensor Is Used In Medical Oxygen Supply Systems

Product Description:

YJJ MF5806E1 Flow Sensor Is Used In Medical Oxygen Supply Systems

Features:

MF5806E1 flow sensor is a dedicated MEMS flow sensing chip for medical oxygen inhalation devices. It is mainly used in medical central oxygen supply systems, emergency oxygen supply, and oxygen inhalation scenarios such as operating rooms and intensive care units. Here is the core parameter and usage description of it:

Core parameters

Sensor type: MEMS flow sensing chip

Application fields: Medical oxygen inhalers (such as MF5806 series)

Applicable scenarios: Operating rooms, intensive care units, emergency centers, respiratory departments, etc.

Measurement range: Needs to be combined with specific models (such as the MF5806 series supports gas mass flow monitoring)

Usage description

Medical oxygen supply monitoring: Real-time monitoring of oxygen flow to ensure oxygen supply safety

Emergency equipment: Used for rapid adjustment of oxygen inhalation volume during emergencies

Precise control: Suitable for medical scenarios with high requirements for flow accuracy

This sensor achieves high precision and miniaturization through integrated MEMS technology, meeting the stability and reliability requirements of medical equipment.

The MF5806E1 flow sensor is one of the electromagnetic flowmeters produced by Mecanica Sistemas S.A. The following is the description of its key parameters:

Measurement accuracy

Standard accuracy: ±0.5%

Low flow rate characteristic: Suitable for low flow rate conditions, with high stability

Medium requirements

Electrical conductivity: ≥ 5 μs/cm for liquids (such as water, sewage, acid-base solutions, etc.)

Bore range

Integrated/Discrete type: DN10 - DN500mm

Electrode material

Optional materials: 316L stainless steel, titanium, tantalum, tungsten carbide (WC), platinum iridium (Pt), etc.

Lining material

Optional types: Chloroprene rubber, polyurethane rubber, polytetrafluoroethylene (PTFE), F46, PFA, etc.

Power Supply and Output

Power Supply: 100~240V AC, 12V/24V DC, Battery or Solar Power Supply

Signal output: 4-20mA DC, frequency/pulse, relay output

Communication Protocol

Supported: RS485/RS232 (Modbus protocol), HART, Profibus-DP/PA

Installation and Protection

Connection methods: Flange, clamp type, thread, clamp ring

Protection level: IP65 (for integrated type), IP67/IP68 (for split-type sensors)

Application scenario

Suitable for precise measurement of liquid flow in complex working conditions with high requirements, such as industrial wastewater and chemical liquids.
