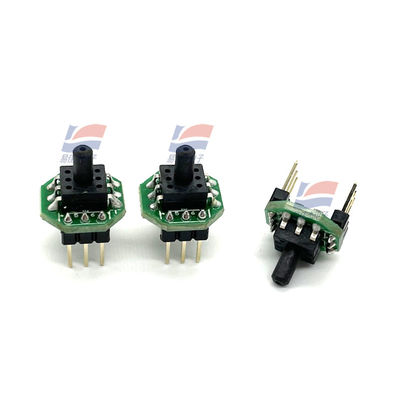

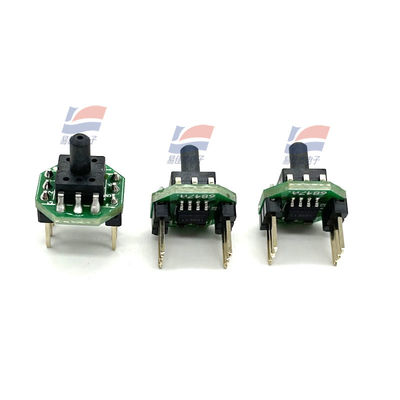

YJJ XGZP6847 010KPG Gas Pressure Electronic Sphygmomanometer Sensor Transmitter Module

Product Description:

YJJ XGZP6847 010KPG Gas Pressure Electronic Sphygmomanometer Sensor Transmitter Module

Features:

Product features

Measuring range -100kpa ~ 0kPa... 700kPa

MEMS technology

(3) Table pressure form

Packing form of SOP

Are applicable to noncorrosive gases

(3) Operating temperature range: -30℃ ~ +100℃

(3) Chip back pressure cavity compression

Fixing pin direction is optional

Virtual Gateway Application areas

(3) Electronic sphygmomanometer, ventilator, oxygen generator, monitor and other medical fields

(3) Tire pressure meter, MAP, steering power, brake power and other automotive electronics

(3) Massager, massage chair, air cushion bed and other sports and fitness equipment

Vacuum packing machine, vacuum mixer, vacuum wall breaking machine, vacuum preservation box, vacuum pump and other vacuum negative pressure field

(3) Washing machine, beer machine, coffee machine, vacuum cleaner, water purifier, pressure instrument, pneumatic components and other fields

Virtual Gateway Overview

XGZP163 piezoresistive pressure sensor is a pressure sensor suitable for biomedical, automotive electronics and other fields, its core

It is a silicon piezoresistive pressure sensitive chip processed by MEMS technology. The pressure sensitive chip consists of an elastic membrane and an integrated membrane

Four resistors, four varistors form the Wheatstone bridge structure. When pressure is applied to the elastic film, the bridge will produce a and

Applied pressure to a linear proportional voltage output signal.

The XGZP163 pressure sensor is an OEM component packaged in standard SOP6 form for easy surface mount installation

Good linearity, repeatability and stability, high sensitivity

Specifications:
