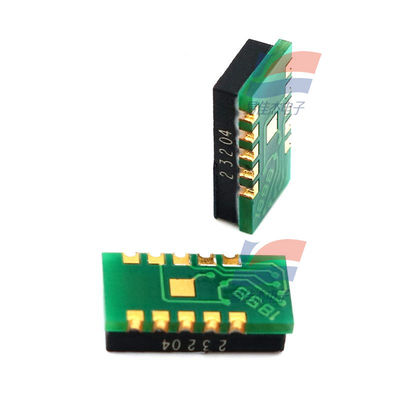

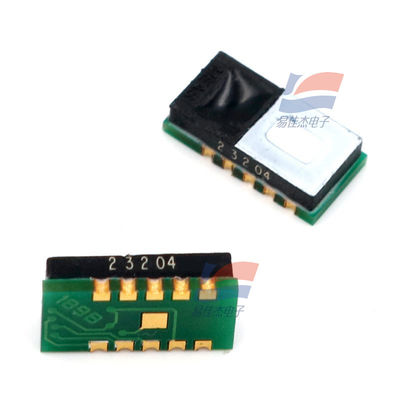

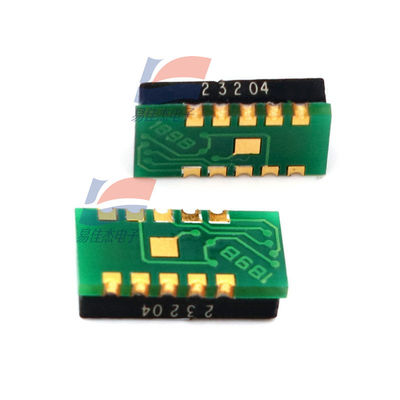

YJJ HTU11F Temperature And Humidity Integrated Digital Output Module - No Calibration Required Low Power Consumption Fast Response

Product Description:

YJJ HTU11F Temperature And Humidity Integrated Digital Output Module - No Calibration Required Low Power Consumption Fast Response

Features:

Detailed Introduction to the Small-Size Digital Output Temperature and Humidity Sensor HTU11/HTU10 Series:

1. Overview of the HTU1x(F) Series of Small-Size Digital Output Temperature and Humidity Sensors

Based on the high-performance humidity sensing elements of Humirel Company, the HTU1x(F) series modules provide accurate and reliable temperature and humidity measurement data for OEM applications. The sensors integrate the sensing element and signal processing circuit onto a micro circuit board, outputting fully calibrated digital signals. The HTU1x(F) series modules are specifically designed for low-power and small-size applications, featuring excellent quality, fast response speed, strong anti-interference ability, and high cost-effectiveness. The small size and very low power consumption make HTU1x(F) one of the choices for various applications.

2. Features of the Small-Size Digital Output Temperature and Humidity Sensor HTU11/HTU10 Series:

1) Miniature surface mount packaging

2) Digital output of temperature and humidity

3) No calibration required

4) Compliant with lead-free standards, suitable for reflow soldering

5) Low power consumption

6) Fast response, very small temperature effect

7) Anti-condensation characteristic: 100% RH humidity condensation environment recovers measurement within 10 seconds

8) Accuracy: +/-5%RH @ 55%RH - HTU10 (F)

+/-3%RH @55%RH - HTU11(F)

Does it offer processing and customization? Yes. Brand: MEAS. Model: HTU11. Type: Humidity. Material: Polymer. Physical properties of the material: Insulator. Crystal structure of the material: Polycrystalline. Manufacturing process: Integrated. Output signal: Digital type. Protection level: . Linearity: (%F.S.). Hysteresis: (%F.S.). Repetitiveness: (%F.S.). Sensitivity: . Drift: . Resolution: 12 bits.

Features:

1) Miniature surface mount package, accuracy: +/-3%rh, 0-rh range, -40-105 degrees working temperature, size: 9.5*4.93*2.3mm.

2) Digital output for temperature and humidity.

3) No calibration required.

4) Compliant with lead-free standards, suitable for reflow soldering.

5) Low power consumption.

6) Fast response, very small temperature effect.

7) Directly connect SHT11 pin to pin

Meas Zui has recently launched a series of digital output temperature and humidity sensors, namely htu1x series. The following are the available models:

htu10: Accuracy +/- 5% => Can be directly substituted for sht10;

htu10f: Accuracy +/- 5% / Incorporates PTFE filter (as an alternative to SHT10 + special filter)

htu11: Accuracy +/- 3% => Can be directly substituted for sht11;

htu11f: Accuracy +/- 3% / Incorporates PTFE filter (as an alternative to SHT11 + special filter)
