Ürün ayrıntıları:
|
Besleme gerilimi: | 2.2 ~ 5.5V | Ölçüm aralığı: | -40 ~ 120 ° C, 0 ~%100 RH |
---|---|---|---|
Ölçüm doğruluğu: | ± 0.3 ° C (tipik), ±%2 RH (25 ° C) | Karar: | 0.01'c,%0.024 RH |
Vurgulamak: | AHT20-F digital temperature sensor,integrated humidity sensor chip,digital output temperature sensor |

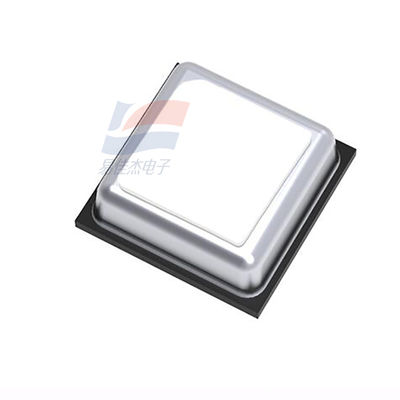

AHT20-F Temperature And Humidity Sensor Chip Integrated Digital Output
AHT20-F is an integrated temperature and humidity sensor, which is covered with a carefully selected PTFE waterproof and breathable membrane, which can effectively prevent the sensor opening from contacting water vapor and dust, ensuring that AHT20-F is not polluted, so that the sensor maintains a high sensitivity and obtains more lasting high-precision measurements, thereby extending the service life of the sensor. Under the protection of the waterproof and breathable membrane, AHT20-F has a higher cost-effectiveness and can adapt to more harsh environments, such as high temperature, high humidity and dusty working environments.
Repeatability | ±0.1°C, ±0.1%RH |
Response time (t63%) | 5~30s (temperature), 8~30s (humidity) |
Long-term drift | <0.1°C/yr, <1%RH/yr |
