Ürün ayrıntıları:
|
Basınç tipi: | Vakum monometresi | İşletme basıncı: | 15 psi |
---|---|---|---|
Doğruluk: | %0,2 | Çıktı Türü: | Analog |
Vurgulamak: | PCCFA6G Board Mount Pressure Sensors,Miniature Board Mount Pressure Sensors,1 Psi to 250 Psi Pressure Sensors |

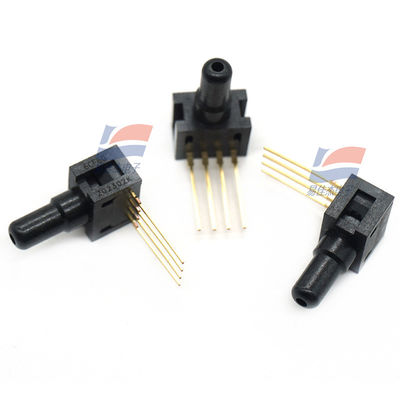

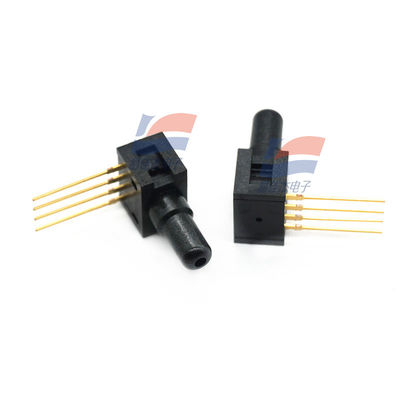

26PCCFA6G Board Mount Pressure Sensors Miniature Low Pressure 1 Psi to 250 Psi
The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is
proportional to the input pressure.
Mounting Style
|
Through Hole |
Port Type | Single Axial Barbless |
Package / Case | SIP-4 |
Minimum Operating Temperature | - 40℃ |
Maximum Operating Temperature | + 85℃ |
Port Size | 0.2 in |
Supply Voltage - Max | 10 V |
