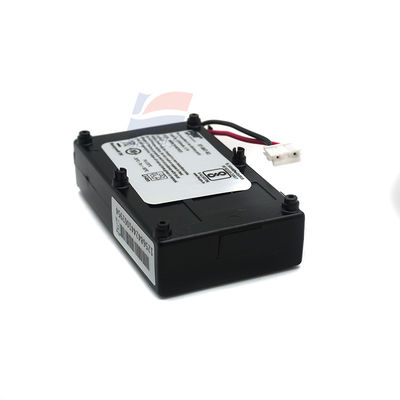

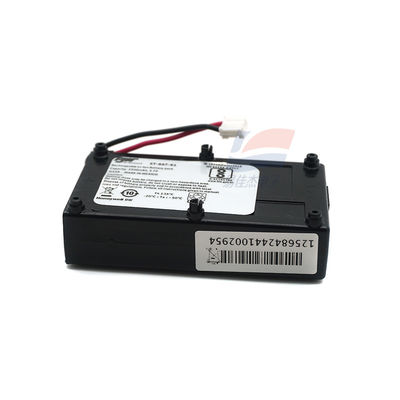

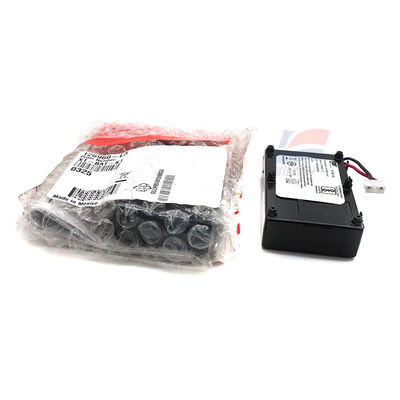

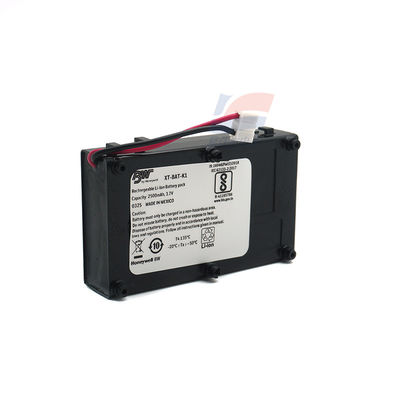

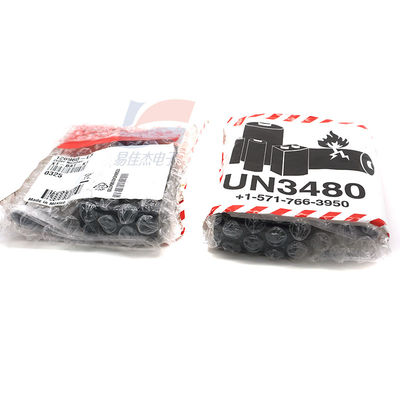

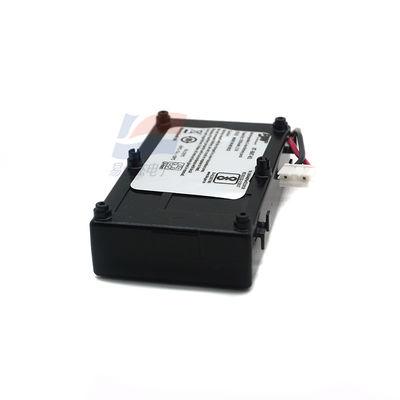

YJJ XT-BAT-K1 Battery Replacement Part Suitable For BW Gas Detector Max XT II

Product Description:

YJJ XT-BAT-K1Battery Replacement Part Suitable For BW Gas Detector Max XT II

Features:

XT-BAT-K1 is not a gas analyzer model, but the battery model for the Honeywell BW GasAlert Max XT II Gas Analyzer. Below are the English parameters of this analyzer:
1. Detected Gases & Ranges
Hydrogen Sulfide (H₂S): 0-200 ppm
Carbon Monoxide (CO): 0-1000 ppm
Oxygen (O₂): 0-30.0% Volume
Combustible Gases: 0-100% LEL or 0-5.0% Volume (Methane)
2. Resolution
H₂S & CO: 1 ppm
O₂: 0.1% Volume
Combustible Gases: 1% LEL or 0.1% Volume
3. Sensor Type
Electrochemical sensors: For H₂S, CO, and O₂
Catalytic bead sensor: For combustible gases
4. Sampling Method
Built-in integrated sampling pump with diaphragm technology
Supports remote sampling, maximum distance up to 20 meters
5. Alarm Modes
Three-level alarms: Low limit, high limit, over-limit
Additional alerts: Low battery, pump failure
Alarm formats: 95 dB audible alarm, vibrating alarm, wide-angle visual LED 光柱 (dual red LEDs)
6. Display
Continuous LCD display for real-time gas concentrations
7. Dimensions & Weight
Dimensions: 13.1 x 7.0 x 5.2 cm
Weight: 316 grams
8. Operating Environment
Temperature: -20°C to 50°C
Humidity: 10%-100% Relative Humidity (non-condensing)
9. Battery Life
Lithium-ion battery: Up to 13 hours of operation (at 20°C)
Supports fast charging: Full charge in 6 hours
10. Data Logging
Standard 32MB MMC flash card
Stores at least 16 hours of gas concentration data and 30 event records
Data download: Via Fleet Manager II software or IR interface

Rugged GasAlertMaxXT reliably monitors up to four toxic gases, combining intuitive single-button interface operation with an all-in-one sampling pump. Tamper-proof, user-adjustable options allow you to customize the device to suit your application. With the new smart pump technology, access to confined Spaces and remote sampling is unprecedented. Minimize the probability of pump blockage and improve the accuracy of remote sampling results. GasAlertMax XT is fully compatible with the MicroDock II automatic test and calibration system.

Product characteristics

Integrated sampling pump with reliable diaphragm technology

Best blockage detection in the industry with semiconductor pressure sensors

Multi-language support, including English, French, German, Spanish and Portuguese

Fleet Manager II makes it easy to manage your detectors

Equipped with standard data recording and event recording functions
